Today I present
another post in a series of learning labs related to the CCIE lab exam. Today's
blog is focused on basic confederation configuration with a little route
reflection and iBGP/eBGP prefix advertisement thrown in…enjoy.
Concepts covered:
-BGP confederation
-BGP route
reflection
-iBGP/eBGP prefix
advertisement

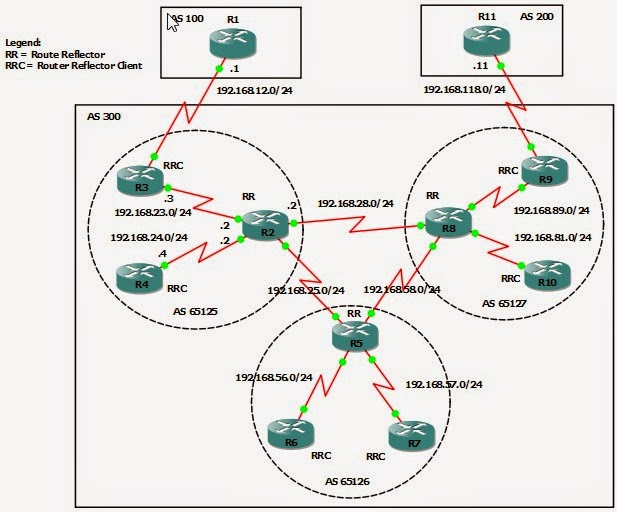

Topoogy used
Tasks to complete
this lab:
-Configure eBGP
peering between R1-R3 and R11-R9
-Configure iBGP
peering between R2-R3 and R2-R4
-Configure iBGP
peering between R5-R6 and R5-R7
-Configure iBGP
peering between R8-R9 and R8-R10
-Configure iBGP
peering between R2-R5 and R2-R8 and R5-R8
-Configure R3-R2-R4
as sub-domain 65125
-Configure R6-R5-R7
as sub-domain 65126
-Configure R8-R9-R10
as sub-domain 65127
-Each sub-domain
above should be seen as AS 300 to all external eBGP speakers.
-Advertise the
loopbacks of all devices into BGP
-Ensure full
reachability between all device loopbacks when when sourced from their loopback
addresses
--Constraints
-Do not use static
routes
-Do not modify the
IGP configuration
Link to GNS3 files: Link
Solution
Begin by configuring
BGP on each device. The BGP routing AS should be the sub-autonomous system
number defined in the tasks
R2(config)#router
bgp 65125
R2(config-router)#bgp
confederation identifier 300
R2(config-router)#bgp
confederation peers 65126 65127
R3(config)#router
bgp 65125
R3(config-router)#bgp
confederation identifier 300
R4(config)#router
bgp 65125
R4(config-router)#bgp
confederation identifier 300
R5(config)#router
bgp 65126
R5(config-router)#bgp
confederation identifier 300
R5(config-router)#bgp
confederation peers 65126 65127
R6(config)#router
bgp 65126
R6(config-router)#bgp
confederation identifier 300
R7(config)#router
bgp 65126
R7(config-router)#bgp
confederation identifier 300
R8(config)#router
bgp 65127
R8(config-router)#bgp
confederation identifier 300
R8(config-router)#bgp
confederation peers 65126 65127
R9(config)#router
bgp 65127
R9(config-router)#bgp
confederation identifier 300
R4(config)#router
bgp 65127
R4(config-router)#bgp
confederation identifier 300
Then configure the
eBGP and iBGP sessions and advertise each devices loopback addresses.
R1(config)#router
bgp 100
R1(config-router)#network
172.16.0.0 mask 255.255.255.0
R1(config-router)#network
172.16.1.0 mask 255.255.255.0
R1(config-router)#network
172.16.2.0 mask 255.255.255.0
R1(config-router)#network
172.16.3.0 mask 255.255.255.0
R1(config-router)#neighbor
192.168.12.3 remote-as 300
R2(config)#router
bgp 65125
network 2.2.2.2 mask 255.255.255.255
neighbor 192.168.23.3 remote-as 65125
neighbor 192.168.23.3 route-reflector-client
neighbor 192.168.24.4 remote-as 65125
neighbor 192.168.24.4 route-reflector-client
neighbor 192.168.25.5 remote-as 65126
neighbor 192.168.28.8 remote-as 65127
R3(config)#router
bgp 65125
network 3.3.3.3 mask 255.255.255.255
neighbor 192.168.12.1 remote-as 100
neighbor 192.168.23.2 remote-as 65125
neighbor 192.168.23.2 next-hop-self
R4#sh run | sec
router bgp
R4(config)#router
bgp 65125
no synchronization
bgp log-neighbor-changes
bgp confederation identifier 300
network 4.4.4.4 mask 255.255.255.255
neighbor 192.168.24.2 remote-as 65125
R5(config)#router
bgp 65126
network 5.5.5.5 mask 255.255.255.255
neighbor 192.168.25.2 remote-as 65125
neighbor 192.168.56.6 remote-as 65126
neighbor 192.168.56.6 route-reflector-client
neighbor 192.168.57.7 remote-as 65126
neighbor 192.168.57.7 route-reflector-client
neighbor 192.168.58.8 remote-as 65127
R6(config)#router
bgp 65126
network 6.6.6.6 mask 255.255.255.255
neighbor 192.168.56.5 remote-as 65126
R7(config)#router
bgp 65126
network 7.7.7.7 mask 255.255.255.255
neighbor 192.168.57.5 remote-as 65126
R8(config)#router
bgp 65127
network 8.8.8.8 mask 255.255.255.255
neighbor 192.168.28.2 remote-as 65125
neighbor 192.168.58.5 remote-as 65126
neighbor 192.168.81.10 remote-as 65127
neighbor 192.168.81.10 route-reflector-client
neighbor 192.168.89.9 remote-as 65127
neighbor 192.168.89.9 route-reflector-client
R9(config)#router
bgp 65127
network 9.9.9.9 mask 255.255.255.255
neighbor 192.168.89.8 remote-as 65127
neighbor 192.168.89.8 next-hop-self
neighbor 192.168.118.11 remote-as 200
R10(config)#router
bgp 65127
network 10.10.10.10 mask 255.255.255.255
neighbor 192.168.81.8 remote-as 65127
So at this point we
should have eBGP and iBGP sessions established but we are still missing
something. We are not seeing the routes from R1 and R11 across the entire AS
300. This is because our little sub-autonomous systems are not fully meshed,
and iBGP requires a full messs because iBGP neighbors do not advertise routes
learned from another iBGP neighbor unless you create a route-reflector. So
let's do that.
R2#sh ip bgp
BGP table version is
24, local router ID is 2.2.2.2
<snip>
Network Next Hop Metric LocPrf Weight Path
<snip>
*>i172.16.0.0/24 192.168.23.3 0 100
0 100 i
*>i172.16.1.0/24 192.168.23.3 0 100
0 100 i
*>i172.16.2.0/24 192.168.23.3 0 100
0 100 i
*>i172.16.3.0/24 192.168.23.3 0 100
0 100 I
R8#sh ip bgp
BGP table version is
19, local router ID is 8.8.8.8
Status codes: s
suppressed, d damped, h history, * valid, > best, i - internal,
r RIB-failure, S Stale
Origin codes: i -
IGP, e - EGP, ? - incomplete
Network Next Hop Metric LocPrf Weight Path
<snip>
*>i172.16.4.0/24 192.168.89.9 0 100
0 200 i
*>i172.16.5.0/24 192.168.89.9 0 100
0 200 i
*>i172.16.6.0/24 192.168.89.9 0 100
0 200 i
*>i172.16.7.0/24 192.168.89.9 0 100
0 200 i
R2(config)#router
bgp 65125
neighbor 192.168.23.3 route-reflector-client
neighbor 192.168.24.4 route-reflector-client
R5(config)#router
bgp 65126
neighbor 192.168.56.6 route-reflector-client
neighbor 192.168.57.7 route-reflector-client
R8(config)#router
bgp 65127
neighbor 192.168.81.10 route-reflector-client
neighbor 192.168.89.9 route-reflector-client
Now we can see all
our routes properly.
R2#sh ip bgp
<snip>
Network Next Hop Metric LocPrf Weight Path
*>
2.2.2.2/32 0.0.0.0 0 32768 i
*>i3.3.3.3/32 192.168.23.3 0 100
0 i
*>i4.4.4.4/32 192.168.24.4 0 100
0 i
* 5.5.5.5/32 192.168.58.5 0 100
0 (65127 65126) i
*> 192.168.25.5 0 100
0 (65126) i
*>
6.6.6.6/32 192.168.56.6 0 100
0 (65126) i
*>
7.7.7.7/32 192.168.57.7 0 100
0 (65126) i
* 8.8.8.8/32 192.168.58.8 0 100
0 (65126 65127) i
*> 192.168.28.8 0 100
0 (65127) i
*>
9.9.9.9/32 192.168.89.9 0 100
0 (65126 65127) i
* 192.168.89.9 0 100
0 (65127) i
*>
10.10.10.10/32 192.168.81.10 0
100 0 (65126 65127) i
* 192.168.81.10 0
100 0 (65127) i
*>i172.16.0.0/24 192.168.23.3 0 100
0 100 i
*>i172.16.1.0/24 192.168.23.3 0 100
0 100 i
*>i172.16.2.0/24 192.168.23.3 0 100
0 100 i
*>i172.16.3.0/24 192.168.23.3 0 100
0 100 i
*> 172.16.4.0/24 192.168.89.9 0 100
0 (65126 65127) 200 i
* 192.168.89.9 0 100
0 (65127) 200 i
*> 172.16.5.0/24 192.168.89.9 0 100
0 (65126 65127) 200 i
* 192.168.89.9 0 100
0 (65127) 200 i
*> 172.16.6.0/24 192.168.89.9 0 100
0 (65126 65127) 200 i
* 192.168.89.9 0 100
0 (65127) 200 i
*> 172.16.7.0/24 192.168.89.9 0 100
0 (65126 65127) 200 i
* 192.168.89.9 0 100
0 (65127) 200 i
R5#sh ip bgp
<snip>
Network Next Hop Metric LocPrf Weight Path
* 2.2.2.2/32 192.168.28.2 0 100
0 (65127 65125) i
*> 192.168.25.2 0 100
0 (65125) i
* 3.3.3.3/32 192.168.23.3 0 100
0 (65127 65125) i
*> 192.168.23.3 0 100
0 (65125) i
* 4.4.4.4/32 192.168.24.4 0 100
0 (65127 65125) i
*> 192.168.24.4 0 100
0 (65125) i
*>
5.5.5.5/32 0.0.0.0 0 32768 i
*>i6.6.6.6/32 192.168.56.6 0 100
0 i
*>i7.7.7.7/32 192.168.57.7 0 100
0 i
* 8.8.8.8/32 192.168.28.8 0 100
0 (65125 65127) i
*> 192.168.58.8 0 100
0 (65127) i
*>
9.9.9.9/32 192.168.89.9 0 100
0 (65127) i
*>
10.10.10.10/32 192.168.81.10 0
100 0 (65127) i
* 172.16.0.0/24 192.168.23.3 0 100
0 (65127 65125) 100 i
*> 192.168.23.3 0 100
0 (65125) 100 i
* 172.16.1.0/24 192.168.23.3 0 100
0 (65127 65125) 100 i
*> 192.168.23.3 0 100
0 (65125) 100 i
* 172.16.2.0/24 192.168.23.3 0 100
0 (65127 65125) 100 i
*> 192.168.23.3 0 100
0 (65125) 100 i
* 172.16.3.0/24 192.168.23.3 0 100
0 (65127 65125) 100 i
*> 192.168.23.3 0 100
0 (65125) 100 i
*> 172.16.4.0/24 192.168.89.9 0 100
0 (65127) 200 i
*> 172.16.5.0/24 192.168.89.9 0 100
0 (65127) 200 i
*> 172.16.6.0/24 192.168.89.9 0 100
0 (65127) 200 i
*> 172.16.7.0/24 192.168.89.9 0 100
0 (65127) 200 i
R8#sh ip bgp
<snip>
Network Next Hop Metric LocPrf Weight Path
* 2.2.2.2/32 192.168.25.2 0 100
0 (65126 65125) i
*> 192.168.28.2 0 100
0 (65125) i
* 3.3.3.3/32 192.168.23.3 0 100
0 (65126 65125) i
*> 192.168.23.3 0 100
0 (65125) i
* 4.4.4.4/32 192.168.24.4 0 100
0 (65126 65125) i
*> 192.168.24.4 0 100
0 (65125) i
* 5.5.5.5/32 192.168.25.5 0 100
0 (65125 65126) i
*> 192.168.58.5 0 100
0 (65126) i
*>
6.6.6.6/32 192.168.56.6 0 100
0 (65125 65126) i
* 192.168.56.6 0 100
0 (65126) i
*>
7.7.7.7/32 192.168.57.7 0 100
0 (65125 65126) i
* 192.168.57.7 0 100
0 (65126) i
*>
8.8.8.8/32 0.0.0.0 0 32768 i
*>i9.9.9.9/32 192.168.89.9 0 100
0 i
*>i10.10.10.10/32 192.168.81.10 0
100 0 i
* 172.16.0.0/24 192.168.23.3 0 100
0 (65126 65125) 100 i
*> 192.168.23.3 0 100
0 (65125) 100 i
* 172.16.1.0/24 192.168.23.3 0 100
0 (65126 65125) 100 i
*> 192.168.23.3 0 100
0 (65125) 100 i
* 172.16.2.0/24 192.168.23.3 0 100
0 (65126 65125) 100 i
*> 192.168.23.3 0 100
0 (65125) 100 i
* 172.16.3.0/24 192.168.23.3 0 100
0 (65126 65125) 100 i
*> 192.168.23.3 0 100
0 (65125) 100 i
*>i172.16.4.0/24 192.168.89.9 0 100
0 200 i
*>i172.16.5.0/24 192.168.89.9 0 100
0 200 i
*>i172.16.6.0/24 192.168.89.9 0 100
0 200 i
*>i172.16.7.0/24 192.168.89.9 0 100
0 200 i
And we can ping
successfully.
R6#ping 172.16.1.1
source loopback 0
Type escape sequence
to abort.
Sending 5, 100-byte
ICMP Echos to 172.16.1.1, timeout is 2 seconds:
Packet sent with a
source address of 6.6.6.6
!!!!!
Success rate is 100
percent (5/5), round-trip min/avg/max = 76/83/92 ms
R6#
R4#ping 172.16.4.1
source loopback 0
Type escape sequence
to abort.
Sending 5, 100-byte
ICMP Echos to 172.16.4.1, timeout is 2 seconds:
Packet sent with a
source address of 4.4.4.4
!!!!!
Success rate is 100
percent (5/5), round-trip min/avg/max = 80/84/96 ms
R4#
Type escape sequence
to abort.
Sending 5, 100-byte
ICMP Echos to 172.16.1.1, timeout is 2 seconds:
Packet sent with a
source address of 10.10.10.10
!!!!!
Success rate is 100
percent (5/5), round-trip min/avg/max = 76/84/96 ms
Then remaining tests
are left out but all devices can now ping all loopback address successfully.
-----
One interesting thing to notable about the results of this design the configuration that I would like to explore further. But since this is about learning I will ask
it in the form of a question for viewers to answer in the comments. I'll
respond to any answers, and post the solution another time.
So here is the
question. Why are only some of the routes showing redundant or two paths while
others are not. For instance look at the show IP BGP output of R5 and R2.
Notice that routes to prefixes behind R8 have two paths, a best path and an alternative. But routes to prefixes behind R5 do not from R2's perspective .
So prefixes 9.9.9.9 and 10.10.10.10 have two paths but 6.6.6.6 and 7.7.7.7 do
not. Same is true from R5's perspective, the routes to 2.2.2.2 and 3.3.3.3 are
not redundant but 9.9.9.9 and 10.10.10.10 are. So tell me why that is? I'll
post the answer in a subsequent post.
No comments:
Post a Comment
